Tanks & Kettles

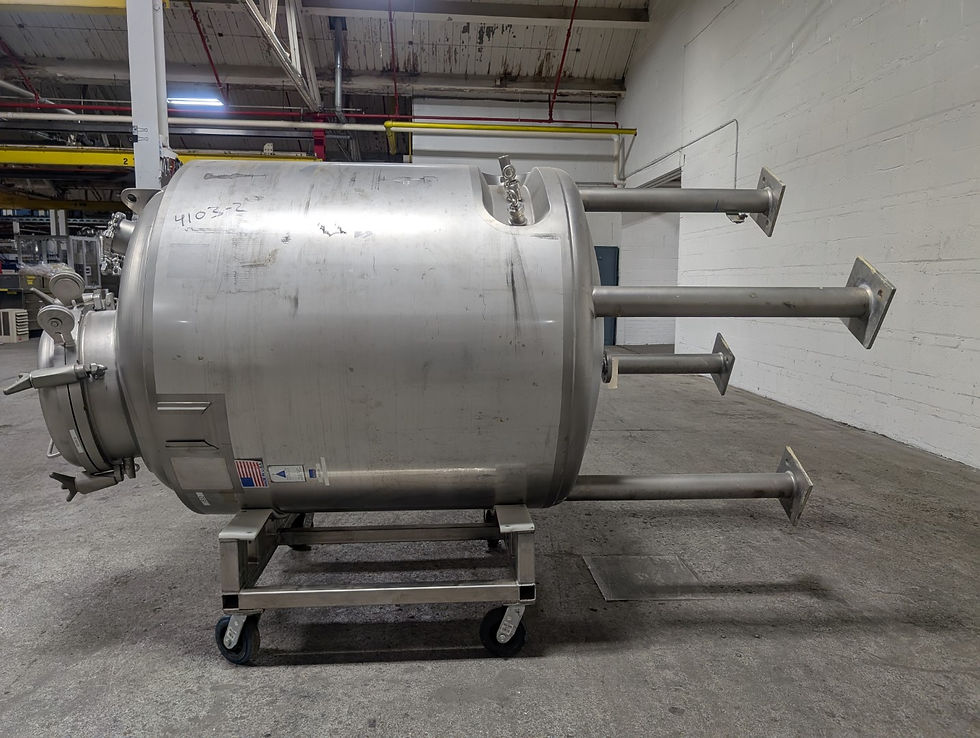

Used 600 Liter Pfaudler Receiver Tank – Glass‑Lined 316L Stainless Steel (2012)

SKU - 2809-35

This used 600 liter Pfaudler receiver tank offers premium corrosion resistance and durability, featuring a 316L stainless steel glass‑lined body engineered for demanding pharmaceutical, chemical, and high‑purity processing applications. Built in 2012, this receiver combines Pfaudler’s renowned glass‑lined technology with a 316L stainless steel removable dish top for easy access and maintenance.

Key Specifications

• Capacity: 600 liters

• Construction:

• 316L stainless steel glass‑lined body

• 316L stainless steel removable dish top (Feldmeier part# SO33612F)

• Lining: 4015 glass steel lining

• Pressure Rating: 50 psi internal

• Vacuum Rating: Full vacuum

• Temperature Rating: 450°F internal

• Mounting: On stand

• Serial Number: J093371

• National Board Number: 52544

• Year Built: 2012

Ideal For

• Pharmaceutical production

• Chemical processing

• High‑purity or corrosive materials

• Batch receiving and transfer operations

Used 800 Gallon DCI Twin Motion Kettle – 316 Stainless Steel

Jacketed, Dual Agitation

SKU- 4621-5

This used 800 gallon DCI twin motion kettle offers robust mixing performance and durable 316 stainless steel construction, ideal for food, chemical, cosmetic, and pharmaceutical processing. With a combination of anchor agitation and a pitched‑blade turbine, this kettle delivers efficient product movement, heat transfer, and uniform blending for a wide range of viscosities.

Key Specifications

• Capacity: 800 gallons

• Construction: 316 stainless steel

• Dimensions: Approx. 66" diameter x 40" straight side

• Design: Dish top and dish bottom

• Internal Rating: 14.9 psi / –15 inHg vacuum at 300°F

• Jacket Rating: 60 psi / –15 inHg vacuum at 250°F

• Agitation:

• 1 HP center anchor agitator with motor drive

• Off‑center 4‑blade pitched turbine agitator, 1 HP motor drive

• Manway: 18" top manway

• Outlet: 2" center bottom outlet

• Mounting: On legs

• Serial #: 91‑PH42252‑D

• Year Built: 1991

Applications

Perfect for batch cooking, blending, heating, cooling, and processing in industries such as:

• Food & beverage

• Cosmetics & personal care

• Chemical processing

• Pharmaceutical & nutraceutical production

Used M Roth GmbH Stainless Steel Storage Tank – 118,745 Liter (31,372 Gallon)

SKU - 4892-1

This used industrial storage tank from M Roth GmbH offers exceptional capacity and durability for pharmaceutical, chemical, food, lab, and packaging applications. Built in 2016, it is constructed from 304 stainless steel to ensure long service life and corrosion resistance.

Technical Specifications

• Capacity: 118,745 liters (31,372 gallons)

• Material: 304 stainless steel

• Dimensions: approx. 3,900 cm (128") diameter × 8,500 cm (279") straight side

• Design: Dish top, cone bottom

• Internal Rating: 0.9 bar at 40°C

• Jacketed Cone: 196" straight side in (4) zones, rated 3 bar at 40°C

• Support: (4) stainless steel legs, approx. 40" discharge height

• Overall Height: approx. 442"

• Serial #: 14063‑28

• Year Built: 2016

Used 1000 Liter Precision Stainless Reactor – 316L Stainless Steel Built 1996

SKU - 4659-4

Durable, vacuum-rated reactor vessel designed for demanding applications in pharmaceutical, chemical, food, and lab environments. Built by Precision Stainless, this unit offers robust construction, high-pressure capability, and flexible integration

Specifications:

• Capacity: 1600 liters

• Material: 316L stainless steel (sanitary-grade, corrosion-resistant)

• Dimensions: Approx. 68" diameter × 17" straight side × 34" deep

• Design: Dish top with 90° cone bottom for efficient drainage

• Pressure Ratings:

• Internal: 15 psi & full vacuum @ 350°F

• Jacket: 100 psi & full vacuum @ 350°F

• Access: 18" top manway

• Outlet: 2" bottom discharge

• Mounting: On legs for stable floor installation

Included Equipment:

• SPX Jacket Recirculation Pump

• Model: WBC C-216

• Motor: 5 HP

• Ensures consistent thermal transfer and process control

Additional Details:

• Manufacturer: Feldmeier Equipment

• Serial #: S067613

• National Board #: 4905

• Year Built: 2014

• Condition: Used, professionally maintained, clean interior

Used Feldmeier 1600 Liter Jacketed Kettle – 316L Stainless Steel

SKU - 2923-36

Specifications:
• Capacity: 1600 liters
• Material: 316L stainless steel (sanitary-grade, corrosion-resistant)
• Dimensions: Approx. 68" diameter × 17" straight side × 34" deep
• Design: Dish top with 90° cone bottom for efficient drainage
• Pressure Ratings:
• Internal: 15 psi & full vacuum @ 350°F
• Jacket: 100 psi & full vacuum @ 350°F
• Access: 18" top manway
• Outlet: 2" bottom discharge
• Mounting: On legs for stable floor installation

Included Equipment:
• SPX Jacket Recirculation Pump
• Model: WBC C-216
• Motor: 5 HP
• Ensures consistent thermal transfer and process control

Additional Details:
• Manufacturer: Feldmeier Equipment
• Serial #: S067613
• National Board #: 4905
• Year Built: 2014
